Package javolution.xml

Support for the encoding of objects, and the objects reachable from them, into XML; and the complementary reconstruction of the object graph from XML.

See: Description

Package javolution.xml Description

Support for the encoding of objects, and the objects reachable from them, into XML; and the complementary reconstruction of the object graph from XML.

This page has been translated into Spanish language by Maria Ramos from Webhostinghub.com/support/edu.

XML marshalling/unmarshalling facility:

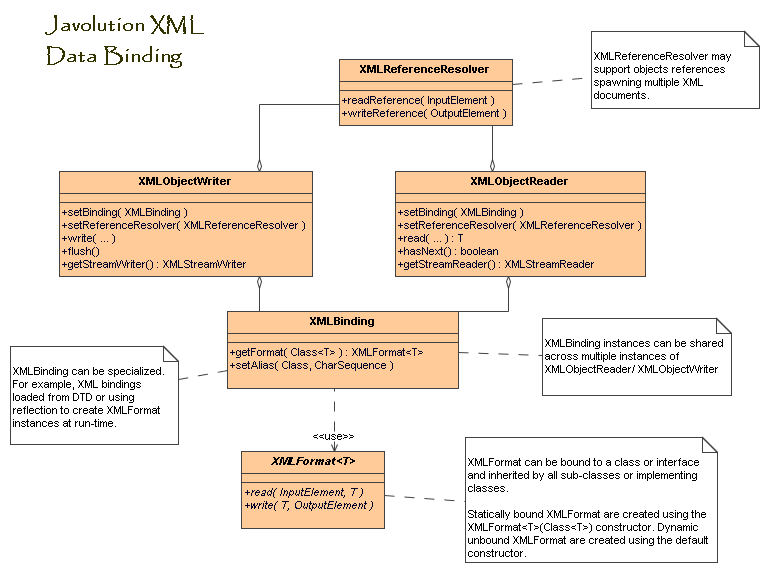

XML Data Binding

Key Advantages:

The default XML format for a class is typically defined using the DefaultXMLFormat annotation tag.

@DefaultXMLFormat(Graphic.XML.class)
public abstract class Graphic implements XMLSerializable {
    private boolean isVisible;
    private Paint paint; // null if none.
    private Stroke stroke; // null if none.
    private Transform transform; // null if none.

    // Default XML format with name associations (members identified by an unique name).
    // See XMLFormat for examples of positional associations.
    public static class XML extends XMLFormat {
        public void write(Graphic g, OutputElement xml) throws XMLStreamException {
            xml.setAttribute("isVisible", g.isVisible);
            xml.add(g.paint, "Paint");
            xml.add(g.stroke, "Stroke");
            xml.add(g.transform, "Transform");
        }
        public void read(InputElement xml, Graphic g) throws XMLStreamException {
            g.isVisible = xml.getAttribute("isVisible", true);
            g.paint = xml.get("Paint");
            g.stroke = xml.get("Stroke");
            g.transform = xml.get("Transform");
        }
    };
}
Sub-classes may override the inherited XML format:
@DefaultXMLFormat(Area.XML.class)
public class Area extends Graphic {
    private Shape geometry;

    // Adds geometry to format.
    public static class XML extends XMLFormat<Area> {
        XMLFormat graphicXML = new Graphic.XML();
        public void write(Area area, OutputElement xml) throws XMLStreamException {
            graphicXML.write(area, xml); // Calls parent write.
            xml.add(area.geometry, "Geometry");
        }
        public void read(InputElement xml, Area area) throws XMLStreamException {
            graphicXML.read(xml, area); // Calls parent read.
            area.geometry = xml.get("Geometry");
        }
    };
}
The following writes a graphic area to a file, then reads it:

// Creates some useful aliases for class names.
XMLBinding binding = new XMLBinding();
binding.setAlias(Color.class, "Color");
binding.setAlias(Polygon.class, "Polygon");
binding.setClassAttribute("type"); // Use "type" instead of "class" for class attribute.

// Writes the area to a file.
XMLObjectWriter writer = XMLObjectWriter.newInstance(new FileOutputStream("C:/area.xml"));
writer.setBinding(binding); // Optional.
writer.setIndentation("\t"); // Optional (use tabulation for indentation).
writer.write(area, "Area", Area.class);
writer.close();

// Reads the area back
XMLObjectReader reader = XMLObjectReader.newInstance(new FileInputStream("C:/area.xml"));
reader.setBinding(binding);
Area a = reader.read("Area", Area.class);
reader.close();
Here is an example of valid XML representation for an area:
<Area isVisible="true">
    <Paint type="Color" rgb="#F3EBC6" />
    <Geometry type="Polygon">
        <Vertex x="123" y="-34" />
        <Vertex x="-43" y="-34" />
        <Vertex x="-12" y="123" />
    </Geometry>
</Area>

The following table illustrates the variety of XML representations supported (Foo class with a single String member named text):

XML FORMAT XML DATA
XMLFormat<Foo> XML = new XMLFormat<Foo>() {
    public void write(Foo foo, OutputElement xml) throws XMLStreamException {
         xml.setAttribute("text", foo.text);
    }
    public void read(InputElement xml, Foo foo) throws XMLStreamException {
         foo.text = xml.getAttribute("text", "");
    }
};

 <!-- Member as attribute -->
 <Foo text="This is a text"/>

XMLFormat<Foo> XML = new XMLFormat<Foo>() {
    public void write(Foo foo, OutputElement xml) throws XMLStreamException {
        xml.add(foo.text);
    }
    public void read(InputElement xml, Foo foo) throws XMLStreamException {
        foo.text = xml.getNext();
    }
};

 <!-- Member as anonymous nested element -->
 <Foo>
     <java.lang.String value="This is a text"/>
 </Foo>

XMLFormat<Foo> XML = new XMLFormat<Foo>(Foo.class) {
    public void write(Foo foo, OutputElement xml) throws XMLStreamException {
        xml.addText(foo.text); // or xml.getStreamWriter().writeCDATA(foo.text) to use CDATA block.
    }
    public void read(InputElement xml, Foo foo) throws XMLStreamException {
        foo.text = xml.getText().toString(); // Content of a text-only element.
    }
};

 <!-- Member as Character Data -->
 <Foo>This is a text</Foo>

XMLFormat<Foo> XML = new XMLFormat<Foo>(Foo.class) {
    public void write(Foo foo, OutputElement xml) throws XMLStreamException {
        xml.add(foo.text, "Text");
    }
    public void read(InputElement xml, Foo foo) throws XMLStreamException {
        foo.text = xml.get("Text");
    }
};

 <!-- Member as named element of unknown type  -->
 <Foo>
     <Text class="java.lang.String" value="This is a text"/>
 </Foo>

XMLFormat<Foo> XML = new XMLFormat<Foo>(Foo.class) {
    public void write(Foo foo, OutputElement xml) throws XMLStreamException {
        xml.add(foo.text, "Text", String.class);
    }
    public void read(InputElement xml, Foo foo) throws XMLStreamException {
        foo.text = xml.get("Text", String.class);
    }
};

 <!-- Member as named element of actual type known -->
 <Foo>
     <Text value="This is a text"/>
 </Foo>

XML format do not have to use the classes public no-arg constructors, instances can be created using factory methods, private constructors (with constructor parameters set from the XML element) or even retrieved from a collection (if the object is shared or unique). For example:

@DefaultXMLFormat(Point.XML.class)
public final class Point implements XMLSerializable {
    private int x;
    private int y;
    private Point() {}; // No-arg constructor not visible.
    public static Point valueOf(int x, int y) { ... }
    public static class XML = new XMLFormat<Point>() {
        public boolean isReferencable() {
            return false; // Always manipulated by value.
        }
        public Point newInstance(Class<Point> cls, InputElement xml) throws XMLStreamException {
             return Point.valueOf(xml.getAttribute("x", 0), xml.getAttribute("y", 0));
        }
        public void write(Point point, OutputElement xml) throws XMLStreamException {
             xml.setAttribute("x", point.x);
             xml.setAttribute("y", point.y);
        }
        public void read(InputElement xml, Point point) throws XMLStreamException {
            // Do nothing immutable.
        }
    };
}

Document cross-references are supported, including circular references. Let's take for example:

@DefaultXMLFormat(xml=Polygon.XML.class)
public class Polygon implements Shape, XMLSerializable {
    private Point[] vertices;
    public static class XML extends XMLFormat<Polygon> {
         public void write(Polygon polygon, OutputElement xml) throws XMLStreamException {
             xml.setAttibutes("count", vertices.length);
             for (Point p : vertices) {
                 xml.add(p, "Vertex", Point.class);
             }
         }
         public void read(InputElement xml, Polygon polygon) throws XMLStreamException {
             int count = xml.getAttributes("count", 0);
             polygon.vertices = new Point[count];
             for (int i=0; i < count; i++) {
                 vertices[i] = xml.get("Vertex", Point.class);
             }
        }
    };
}
Polygon[] polygons = new Polygon[] {p1, p2, p1};
...
TextBuilder xml = TextBuilder.newInstance();
AppendableWriter out = new AppendableWriter().setOutput(xml)
XMLObjectWriter writer = XMLObjectWriter.newInstance(out);
writer.setXMLReferenceResolver(new XMLReferenceResolver()); // Enables cross-references.
writer.write(polygons, "Polygons", Polygon[].class);
writer.close();
System.out.println(xml);
Prints the following (noticed that the first polygon and last one are being shared).
<Polygons length="3">
   <Polygon id="0" count="3">
      <Vertex x="123" y="-34" />
      <Vertex x="-43" y="-34" />
      <Vertex x="-12" y="123" />
   </Polygon>
   <Polygon id="1" count="3">
      <Vertex x="-43" y="-34" />
      <Vertex x="123" y="-34" />
      <Vertex x="-12" y="123" />
   </Polygon>
   <Polygon ref="0"/>
      </Polygons>

ALGORITHMS:

Our XMLObjectReader/XMLObjectWriter are in fact simple wrappers around our Javolution high-performance StAX-like XMLStreamReader and XMLStreamWriter classes. The logic of these wrappers is described below:


OutputElement.add(object, name, uri, class):

1. if (object == null) return

2. getStreamWriter().writeStartElement(uri, name)

3. isReference = referenceResolver.writeReference(object, this)

4. if (!isReference) binding.getFormat(class).write(object, this)

5. getStreamWriter().writeEndElement()

6. end


InputElement.get(name, uri, class):

1. if (!getStreamReader().getLocalName().equals(name) ||
!getStreamReader().getNamespaceURI().equals(uri)) return null

2. object = referenceResolver.readReference(inputElement)

3. if (object != null) Goto 8 // Found reference

4. format = binding.getFormat(class)

5. object = format.newInstance(class, inputElement)

6. referenceResolver.createReference(object, inputElement) // Done before parsing to support circular references.

7. format.read(inputElement, object)

8. getStreamReader().nextTag()

9. end
